ELEVATORS

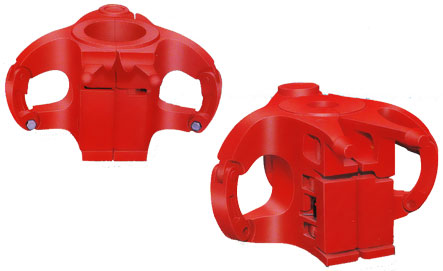

SLIP TYPE ELEVATORS "Y" SERIES

Varco BJ "Y" Series elevators are conventional slip type elevators for handling tubing and small casing. There are 7 types ranging from 20 to 200 ton capacity and covering pipe sizes from 1.05 to 7 5/8 inchese OD. They feature a four slip design which give an optimum contact on the pipe to prevent bttlenecking and gauge damage.

The Varco BJ "YC" type elevator is capable of handling dual tubing strings. All type "Y" series elevator operate with the latch lock combination for safety. The "MYC" and "YC" provide a 7" and the "HYC" a 10 1/2" of intert contact to grip your casing or tubing.





Size Type Capacity ton Weight
in mm lb kg
1.050~ 2 1/16 27~73 LYT 20 57 26
1.315~2 7/8 33~73 MYT 40 148 67
1.315~3 1/2 33~89 YT 75 355 161
2 3/8~3 1/2 60~89 HYT 150 750 336
3 1/2~7 89~178 YC 75 445 206
3 1/2~7 89~178 MYC 125 750 336
2 7/8~7 5/8 89~194 HYC 200 997 452
2 7/8~7 5/8 89~194 HYC AO 200 1465 665

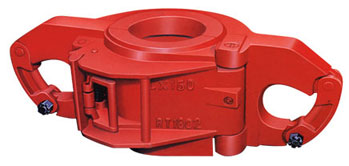

COLLAR TYPE ELEVATOR "A" SERIES

Center-latch elevators are for handling collar-type drill pipe, casing and tubing. All "A" type elevators are constructed in two halves of practically the same weight, providing proper balance and easier opening and closing.
In open position
All "A" type elevators feature latch and safety latch lock combinations.

Size Type Cap Tons
inch mm
1.050-2 1/2 27-73 TA 35
1.66-2 7/8 42-73 TA 65
3 1/2-4 1/2 89-114 TA 65
2 3/8-2 7/8 60-73 TA 100
3 1/2-5 89-127 TA 100
4 3/4-8 5/8 121-219 TA 100
4 1/2-8 5/8 114-219 TA 150
4 3/4-8 5/8 121-219 TA AO 150
8 1/2-11 1/4 216-286 TA 150
8 1/2-11 1/4 216-286 TA AO 150
2 3/8-4 1/2 60-114 RGA 200
3 1/2-7 102-178 GA 350
3 1/2-7 102-178 GA AO 350
7-7 5/8 178-194 GGA 350
7 -7 5/8 178-194 GGA AO 350

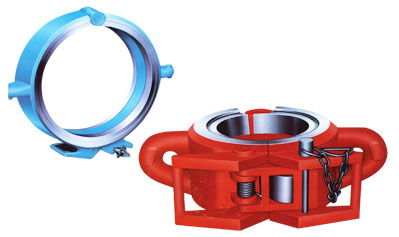

AUXILIARY ELEVATOR "S" SERIES

Square Shoulder Center Latch Elevator (SSC Type)

Like all Varco products, the 100 and 150 ton SSC Elevators are distinguished by their innovative design, engineering excellence and metallurgical quality. These elevators are characterized by features which improve crew efficiency and reduce fatigue.

Pipe can be stabbed straight into the SSC elevator. Varcos narrow profile latch design provides a wide, clear opening without obstruction, allowing crews to work more quickly.

Lifting and closing the Varco elevator requires a fraction of the force needed to lift the close other elevators, because the SSC is so well balanced.

An oversized hinge pin provides maximum distribution of load to minimize wear. All elevators are fully API rated. To assure individual quality, each elevator is pull-tested to 1 1/2 times rated load and then magnetic particle inspected before shipment.

The Varco SSC elevator is available in three frame sizes and can handle tubular goods ranging in size from 2 3/8 thru 8 5/8 inches.

Model Varco Pipe size OD Rated Load Cap
KN Tons
SSC65 TA-65 2 3/8, 2 7/8 585 65
SSC100 TA-100 2 3/8, 2 7/8, 3 1/2, 4, 4 1/2, 5 900 100
SSC125   2 3/8, 2 7/8, 3 1/2 1100 125
SSC150 MRA-150 2 3/8, 2 7/8, 3 1/2, 4, 4 1/2, 5, 5 1/2 1350 150
SSC250   3 1/2, 4, 4 1/2, 5, 5 1/2 2250 250
SSC350   4 1/2, 5, 5 1/2 3150 350

Square Shoulder Side Door Elevator (SSD Type)

A range of models are available to handle drill collar sizes from 6 3/4 thru 11 1/4 inches OD and casing sizes from 6 5/8 to 20 1/2 inches OD.

Varco Elevators hang at less of an angle than other elevators. This means that they require far less effort to lift and close, reducing crew fatigue and improving performance. Drill Collar or casing can be stabbed directly into Varco elevators and the tools narrow profile latch design provides a wide, clear opening, without obstruction.

All Varco elevators are fully API Rated and meet Varcos tough standards for quality, and rugged dependability.


Pipe sizes Type Cap. Ton weight
Inch mm lb kg
1.05~ 2 1/2 27-73 TA 35 39 18
1.66~ 2 7/8 42-73 TA 65 65 29
3 1/2~4 1/2 89-114 TA 65 83 38
2 3/8~ 2 7/8 60-73 TA 100 100 45
3 1/2-5 89-127 TA 100 158 72
4 3/4-8 5/8 121-219 TA 100 410 186
4 1/2-8 5/8 114-219 TA 150 430 195
4 3/4- 8 5/8 121-219 TA AO 150 530 240
8 1/2-11 1/4 216-286 TA 150 430 195
8 1/2-11 1/4 216-286 TA AO 150 550 250
2 3/8-4 1/2 60-114 RGA 200 162 73
3 1/2-7 89-178 GA 350 555 252
3 1/2-7 89-178 GA AO 350 725 330
7- 7 5/8 178-194 GGA 350 695 316
7-7 5/8 178-194 GGA AO 350 998 454

Varco Single Joint Center atch Casing Elevator (SJC type)

SJC are available in models to handle casing sizes from 6 5/8 to 20 1/2 inches OD. Varcos tough standards for metallurgical quality and rugged dependability in the field ensure a long, trouble-free services life. The built-in safety latch and dependable spring operation allows simple, safe operation of the latch mechanism in all conditions.

Model Casing Size OD Load Cap. ton
SJC4 2 3/8~5 3/4 4
SJC5 6~14 5
SJC6 16~36 6
