Non-rotary Stabilizers

Non-Rotary Stabilizer

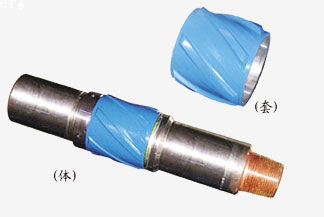

Non-Rotary Stabilizers is composed of two parts, one is mandrel, anther is sleeve. Between the sleeve and mandrel can be relation. To improve its life, the inner wall of sleeve and the surface of mandrel OD were treated to use special anti-wear. In addition to this stabilizers have the function of general Stabilizers, as the sleeve and mandrel can be relative rotation, can play a role in reducing the torque, to make drill assembly reduce torque resistance during work.





Type

Working O.D.
mm (inch)

Fishing O.D.
mm (inch)

I.D.
mm (inch)

Blade Length
mm (inch)

Connection
API

FXW146

146(5-3/4)

121(4-3/4)

50.8(2)

180(7-5/64)

NC38

FXW197

197(7-3/4)

165(6-1/2)

50.8(2)

203(8)

NC50

FXW210

210(8-17/64)

FXW240

240(9-29/64)

FXW311

311(12-1/4)

209(8-1/4)

71.4(2-13/16)

256(14-1/64)

6-5/8REG

FXW406

406(16)

241.3(9)

76.2(3)

464(18-17/64)

7-5/8REG

FXW432

432(17)

500(19-11/16)

FXW559

558.8(22)

610(24)

FXW771

711(28)

710(28)
